    Product

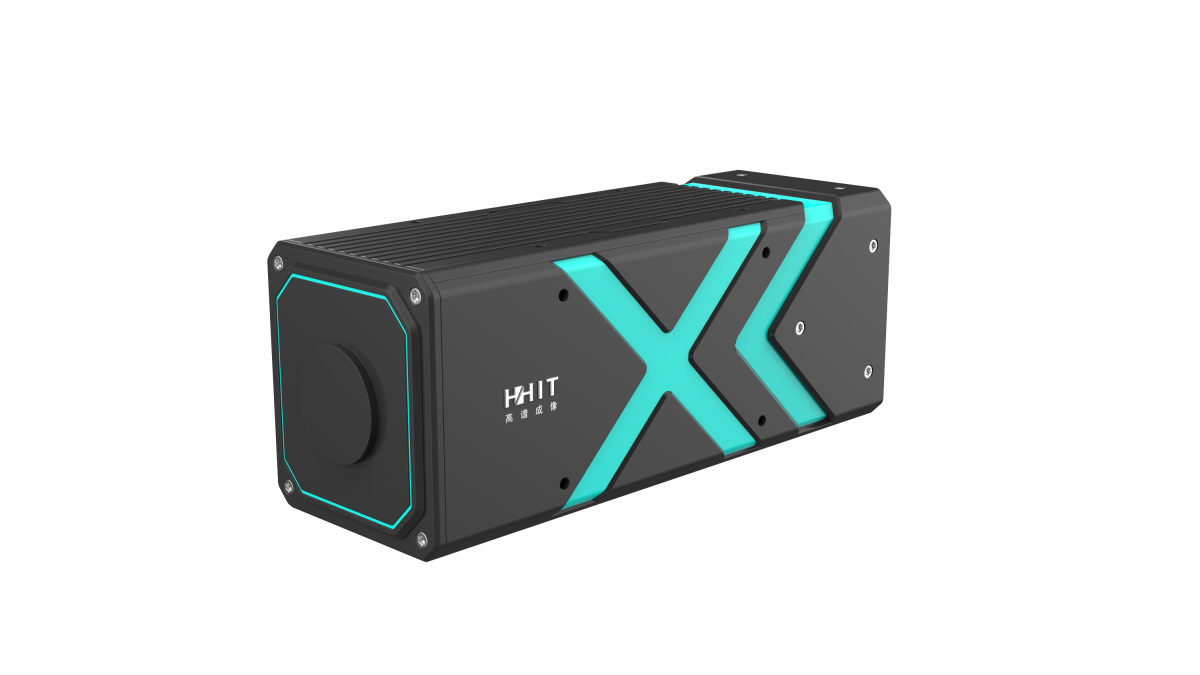

    HY-1230-01 VNIR(400-1000nm) Hyperspectral Camera
    The HY-1230-01 visible-near infrared hyperspectral camera offers multiple spectral bands, as well as optional spectroscopic modules of different sizes and detector types. Its wavelength range covers 400-1000nm, and the product series includes visible-near infrared hyperspectral cameras. Depending on different research and application scenarios, the HY-1230-01 can be freely integrated into UAV-borne hyperspectral imaging systems, laboratory setups, portable hyperspectral imagers, microscopic hyperspectral imagers, and other instruments. It also provides user-friendly secondary development support, addressing customers' in-depth perception needs in application fields such as education and scientific research, smart agriculture, ecological environmental protection, intelligent manufacturing, and industrial inspection.

    Application Fields

    Education and scientific research

    Smart agriculture

    Ecological environmental protection

    Intelligent manufacturing

    Industrial inspection

    Functional Features

    Wavelength range covers 400-1000nm.

    Adopts prism-grating spectroscopy, enabling acquisition of more accurate and higher-resolution spectral data.

    Self-developed modules are compatible with multiple detectors, offering options for multiple spectral bands, sizes, and detector types.

    Features small size, light weight, excellent spectral performance, and high cost-effectiveness.

    Adopts full-target surface optical design for high imaging quality, with a spot diameter smaller than 0.5 pixels.

    Equipped with a standard C-Mount lens interface, allowing focal length replacement according to user needs.

    Specifications

    TECHNICAL SPECIFICATIONS

    HY-1230-01

    Spectral Dispersion Method

    Transmission Grating Spectroscopy

    Spectral range

    400-1000nm

    Spectral resolution

    ≤ 2.8nm

    Sampling Interval

    2.2nm

    F-number

    F/2.6

    Sensor

    CMOS

    Data interface

    GigE / USB3.0

    Power supply

    External  (12-24 VDC),3W

    Sensor Optical Format

    1/1.2” , 11.3mm x 7.1mm

    Sensor resolution

    1920 x 1200

    Pixelsize

    5.86 μm x 5.86 μm

    Bit depth

    12bits

    Effective slit length

    11.3mm

    Slit width

    25μm

    Recommended binning

    4x4

    Spatial pixels

    480

    Spectral bands

    300

    Field of View (FOV)

    15.6°@f=35mm

    Instantaneous Field of View (IFOV)

    0.71mrad@f=35mm

    Frame rate

    50fps/128fps

    Dimensions

    Approx240mm x80mm x 70mm

    Weight

    <1.5Kg

    Operating temperature

    ‘0-40℃

    Storage temperature

    ‘0-50℃
