    Product

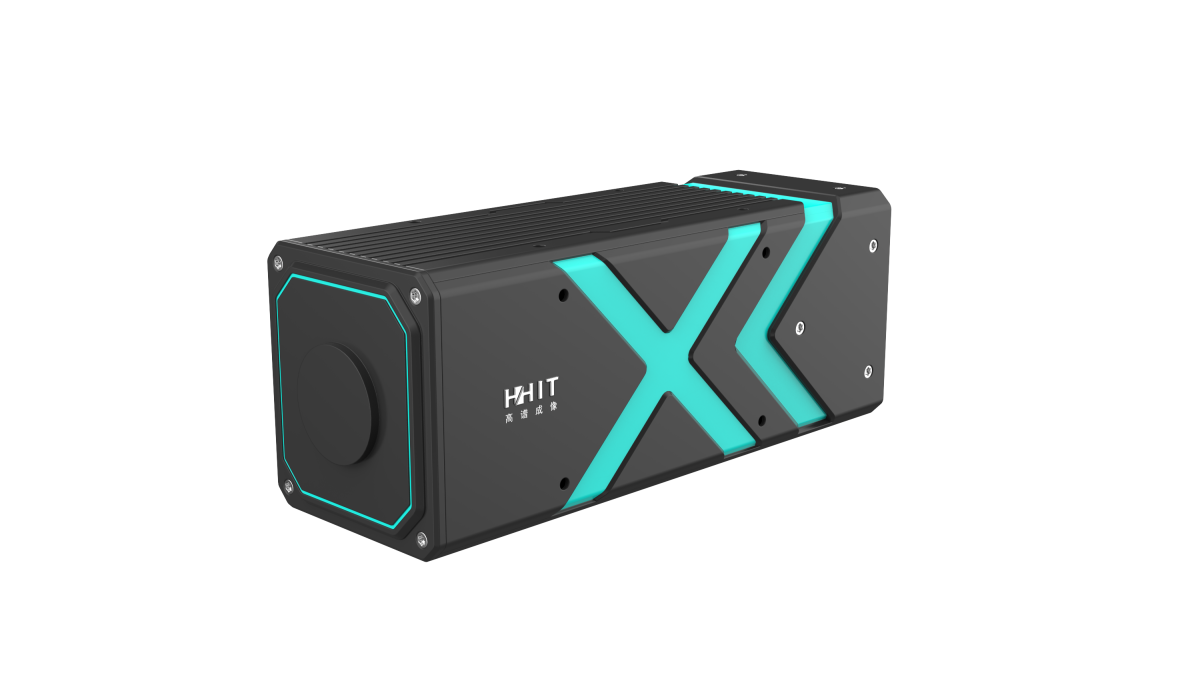

    HY-1260-01 VNIR(400-1000nm) Hyperspectral Camera
    The HY-1260-01 visible-near infrared hyperspectral camera provides multiple spectral bands, along with optional spectroscopic modules of different sizes and detector types. Its wavelength range covers 400-1000nm. Based on varying research and application scenarios, the HY-1260-01 can be flexibly integrated into UAV-borne hyperspectral imaging systems, laboratory equipment, portable hyperspectral imagers, microscopic hyperspectral imagers, and other instruments. It also offers convenient secondary development support, meeting customers' in-depth perception requirements in fields such as education and scientific research, smart agriculture, ecological environmental protection, intelligent manufacturing, and industrial inspection.

    Application Fields

    Education and scientific research

    Smart agriculture

    Ecological environmental protection

    Intelligent manufacturing

    Industrial inspection

    Functional Features

    Wavelength range covers 400-1000nm.

    Utilizes prism-grating spectroscopy to obtain more precise and higher-resolution spectral data.

    Self-developed modules are compatible with various detectors, providing choices for multiple spectral bands, sizes, and detector types.

    Boasts small size, light weight, superior spectral performance, and high cost-effectiveness.

    Employs full-target surface optical design for high imaging quality, with a spot diameter less than 0.5 pixels.

    Comes with a standard C-Mount lens interface, enabling focal length replacement as per user requirements.

    Specifications

    TECHNICAL SPECIFICATIONS

    HY-1260-01

    Spectral Dispersion Method

    Transmission Grating Spectroscopy

    Spectral range

    400-1000nm

    Spectral resolution

    ≤ 2.3nm

    Sampling Interval

    2.8nm

    F-number

    F/2.4

    Sensor

    CMOS

    Data interface

    GigE

    Power supply

    External,12V DC,4.2W

    Optical Format

    1.1” , 14.5mm x 9.9mm

    Sensor resolution

    1600 x 1100

    Pixelsize

    9 μm x 9 μm

    Bit depth

    12bits

    Effective slit length

    14.2mm

    Slit width

    30μm

    Recommended binning

    4x4

    Spatial pixels

    390

    Spectral bands

    228

    Field of View (FOV)

    22.9°@f=35mm

    Instantaneous Field of View (IFOV)

    0.85mrad@f=35mm

    Frame rate

    68fps

    Dimensions

    Approx.280mm x 80mm x 70mm

    Weight

    <1.5Kg

    Operating temperature

    ‘0-40℃

    Storage temperature

    ‘0-50℃
