Application Fields
Education and scientific research
Smart agriculture
Ecological environmental protection
Intelligent manufacturing
Industrial inspection
Functional Features
Wavelength range covers 900-1700nm.
Adopts prism-grating spectroscopy, enabling acquisition of more accurate and higher-resolution spectral data.
Self-developed modules are compatible with multiple detectors, offering options for multiple spectral bands, sizes, and detector types.
Features small size, light weight, excellent spectral performance, and high cost-effectiveness.
Adopts full-target surface optical design for high imaging quality, with a spot diameter smaller than 0.5 pixels.
Equipped with a standard C-Mount lens interface, allowing focal length replacement according to user needs.
Specifications

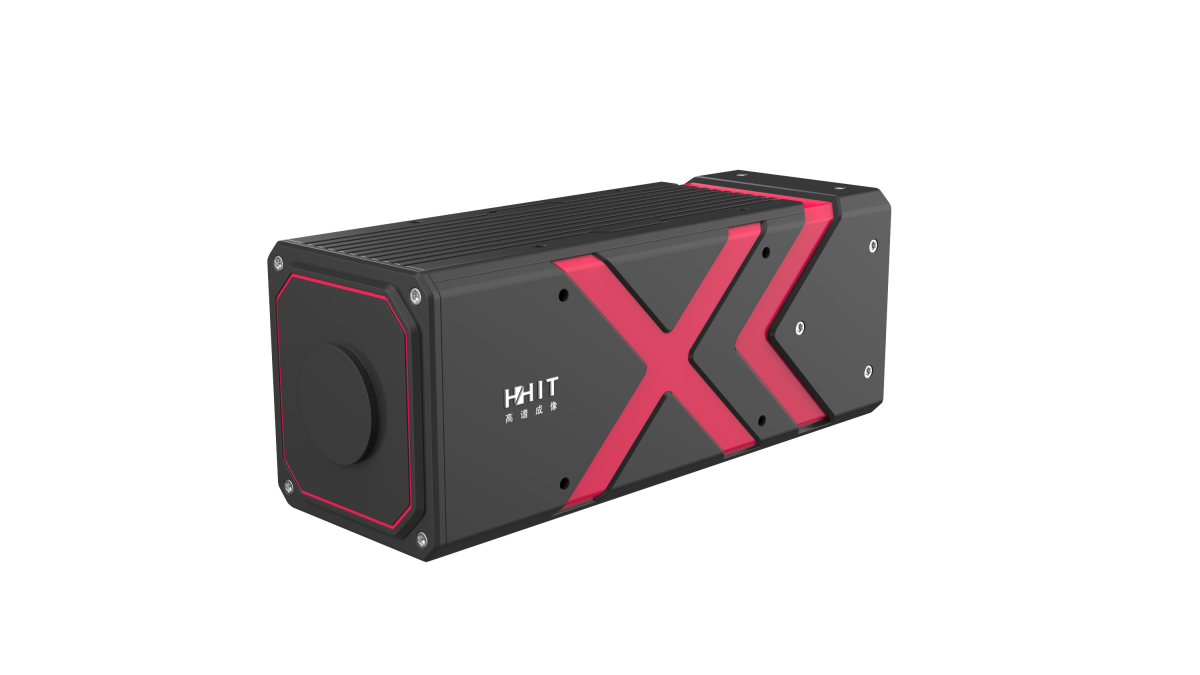

TECHNICAL SPECIFICATIONS | HY-1310-05 |
Spectral Dispersion Method | Transmission Grating Spectroscopy |
Spectral range | 900-1700nm |
Spectral resolution | ≤ 6nm |
Sampling Interval | 1.7nm |
F-number | F/2.0 |
Sensor | InGaAs(TE Cooled) |
Data interface | GigE |
Power supply | 12V DC ，8.4W（TEC OFF) / 16W（TEC ON) |
Sensor Optical Format | 9.6mm x 7.68mm |
Sensor resolution | 640*512 |
Pixelsize | 15μm x15 μm |
Bit depth | 14bit |
Effective slit length | 9.6mm |
Slit width | 30μm |
Recommended binning | 1x1 |
Spatial pixels | 640 |
Spectral bands | 512 |
Field of View (FOV) | 15.6°@f=35mm |
Instantaneous Field of View (IFOV) | 0.43mrad@f=35mm |
Frame rate | 175fps |
Dimensions | 300mm*105mm*90mm (excluding lens) |
Weight | ＜3kg |
Operating temperature | ‘0-40℃ |
Storage temperature | ‘0-50℃ |
