    Product

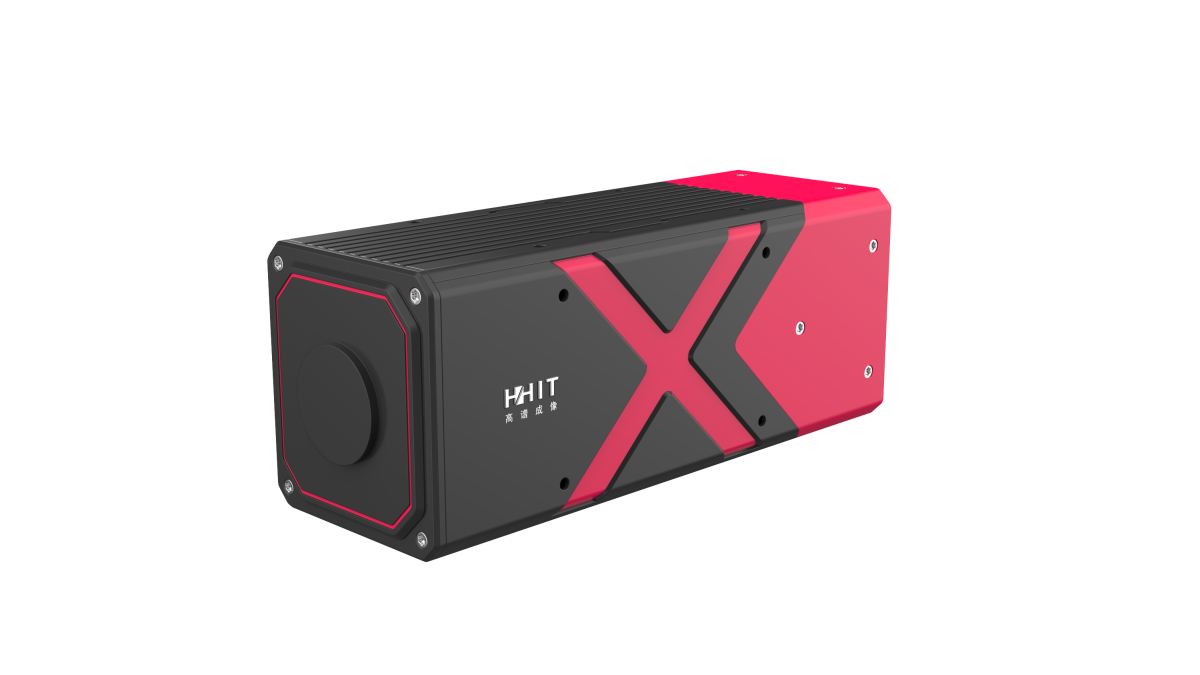

    HY-1510-03 SWIR(900-2500nm) Hyperspectral Camera
    The HY-1510-03 visible-near infrared hyperspectral camera provides multiple spectral bands, along with optional spectroscopic modules of different sizes and detector types. Its wavelength range covers 900-2500nm. Based on varying research and application scenarios, the HY-1510-03 can be flexibly integrated into UAV-borne hyperspectral imaging systems, laboratory equipment, portable hyperspectral imagers, microscopic hyperspectral imagers, and other instruments. It also offers convenient secondary development support, meeting customers' in-depth perception requirements in fields such as education and scientific research, smart agriculture, ecological environmental protection, intelligent manufacturing, and industrial inspection.

    Application Fields

    Education and scientific research

    Smart agriculture

    Ecological environmental protection

    Intelligent manufacturing

    Industrial inspection

    Functional Features

    Wavelength range covers 900-2500nm.

    Utilizes prism-grating spectroscopy to obtain more precise and higher-resolution spectral data.

    Self-developed modules are compatible with various detectors, providing choices for multiple spectral bands, sizes, and detector types.

    Boasts small size, light weight, superior spectral performance, and high cost-effectiveness.

    Employs full-target surface optical design for high imaging quality, with a spot diameter less than 0.5 pixels.

    Comes with a standard C-Mount lens interface, enabling focal length replacement as per user requirements.

    Specifications

    TECHNICAL SPECIFICATIONS

    HY-1510-03

    Spectral Dispersion Method

    Transmission Grating Spectroscopy

    Spectral range

    900-2500nm

    Spectral resolution

    ≤ 10nm

    Sampling Interval

    3nm

    F-number

    F/2.0

    Sensor

    HgCdTe (Stirling)

    Data Interface

    GigE

    Power supply

    24V DC

    Sensor Optical Format

    9.6mm x 7.68mm

    Sensor resolution

    640 x 512

    Pixelsize

    15 μm x 15 μm

    Bit depth

    14bits

    Effective slit length

    9.6mm

    Slit width

    30μm

    Recommended binning

    1x1

    Spatial pixels

    640

    Spectral bands

    ≥400

    Field of View (FOV)

    21.8°@f=25mm

    Instantaneous Field of View (IFOV)

    1.2mrad@f=25mm

    Frame rate

    ≥100fps

    Dimensions

    約500mm*150mm*150mm (excluding lens)

    Weight

    < 8kg

    Operating temperature

    ‘0-40℃

    Storage temperature

    ‘0-50℃
