Application Fields
Mineral research
Environmental analysis

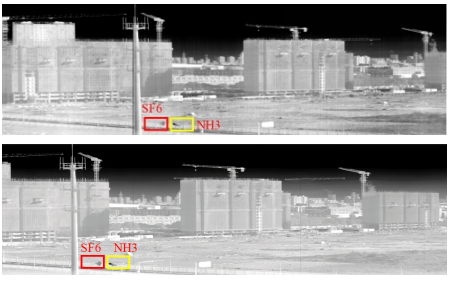

Waste gas emission detection
Application Cases
Functional Features
Wavelength range covers 7.7-12.5μm.
Adopts prism-grating spectroscopy to obtain more accurate and higher-resolution spectral data.
Self-developed modules are compatible with multiple detectors, offering options for multiple spectral bands, sizes, and detector types.
Features small size, light weight, excellent spectral performance, and high cost-effectiveness.
Employs full-target surface optical design for high imaging quality, with a spot diameter smaller than 0.5 pixels.
Equipped with a standard C-Mount lens interface, allowing focal length replacement according to user needs.
Specifications
TECHNICAL SPECIFICATIONS | HY-1910-01 |
Spectral Dispersion Method | Reflective Grating Spectroscopy |
Spectral range | 7.7-12.5μm |
Spectral resolution | ＜40nm |
F-number | F/2.0 |
Sensor | Cooled Infrared Detector |
Data interface | GigE |
Power supply | |
Detector Original Pixel Size | 15μm x15 μm |
F-number | F/2.0 |
effective spatial pixel number | 640 |
Spectral Bands | 128 |
Field of View (FOV) | ≥12° |
Lens Interface | C Mount |
Dimensions | 250mm*200mm*90mm |
Weight | ＜12kg |
Operating temperature | ‘0-40℃ |
Storage temperature | ‘0-50℃ |
Software | Data Acquisition Software + SDK |
